DJI Ronin-M Compact 3-Axis Stabiliser Gimbal Hire
£85/Day or £325/Week
DJI Ronin-M Compact 3-Axis Stabiliser Gimbal Hire
£85/Day or £325/Week
Compact & lightweight 3-Axis stabilized handheld gimbal system. Three operation modes: Underslung, Upright & Briefcase. Max payload 3.6Kg.
Nb. Camera not included.
1x DJI Ronin-M Top Handle
2x DJI Ronin-M Handle Bar
2x DJI Ronin-M Grip Handle
1x DJI Ronin-M Remote Control
1x DJI Ronin-M Tuning Stand
1x DJI Ronin-M Battery Charger
2x DJI Ronin-M Intelligent Battery
1x DJI Ronin-M Camera Plate
2x DJI Ronin-M Camera Screw A (1/4")
2x DJI Ronin-M Camera Screw B (3/8")
2x DJI Ronin-M Camera Screw C (1/4")
2x DJI Ronin-M Camera Screw D (3/8")
1x DJI Ronin-M Lens Support
1x DJI Ronin-M Lens Support Screw
1x DJI Ronin-M Allen Wrench (3mm)
1x DJI Ronin-M Allen Wrench (3/16")
1x DJI Ronin-M Quick Release Mount
4x DJI Ronin-M 15mm Rod
1x DJI Ronin-M 15mm Rod Mount w/2x Screw
1x DJI Ronin Shim
1x USB Adapter Plug
1x Fig 8 Mains Cable
1x Micro USB Cable
Monitor is NOT INCLUDED. Please see Monitors for hire here.
Camera/DSLR is NOT INCLUDED. Please see Cameras for hire here.

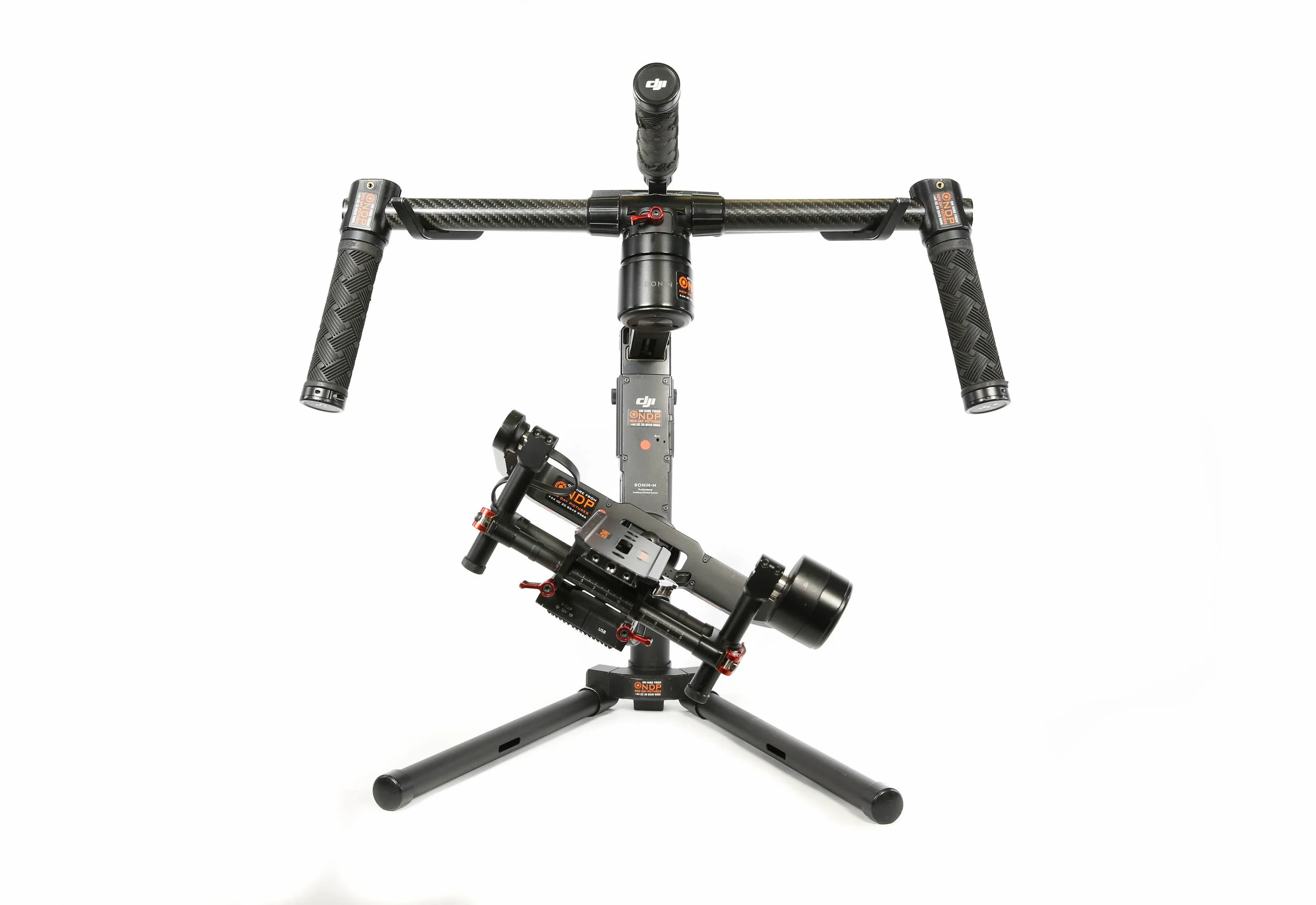

Handheld Gimbal System. Compact, lightweight, and remarkably easy to use, the Ronin-M gives you what every filmmaker dreams of: freedom. Featuring all of the functions of the original Ronin, but re-engineered for increased functionality and to be a fraction of the size and weight, the Ronin-M gives you the power of a professional setup in the unmatched flexibility of a one-man crew. Maximum load 3.6kg.
The Ronin-M 3-Axis Handheld Gimbal Stabilizer from DJI is a camera stabilization system designed to give the operator close to the freedom of unencumbered handheld shooting but without the hand-shake. Suitable for most camera types and configurations up to 8 pounds, the Ronin-M uses brushless motors that work on three axes: one for side-to-side "roll" - keeping the horizon level - one for tilt, and one for pan. The system is computer-controlled and features a tilt range of 105° up / 165° down plus a roll range of ±110°. Furthermore, the system boasts a precision of control of ±0.02°, enabling precise camera moves and stability correction against even very fine movements. In addition to handheld shooting, the gimbal can be used in vehicle mounting scenarios and other contexts where vibrations or other abrupt movements would make tripods and rigid camera support systems unsuitable.
The Ronin-M supports dual-operator shooting, much like working with a jib that has a motorized pan/tilt head. In this mode, a second operator would use the included transmitter (radio controller) to manually control camera pan and tilt independently of which way the Ronin-M itself moves. The included transmitter/receiver system operates on 2.4 GHz and is proprietary. If you prefer to use a third-party transmitter there is a D-Bus port on the Ronin-M to install your own receiver.
As with sled and vest style stabilizers, motorized gimbal systems require balancing before use. Once balanced, you can configure the Ronin-M for your particular camera arrangement using the Assistant Software for compatible iOS and Windows (Desktop) devices with Bluetooth. Because every camera and lens combination has a different mass and weight distribution, there is an ATS (Auto Tune Stability) procedure in which each axis will adjust individually, repeating the process until all three are aligned. A gimbal tuning stand is provided so you won't have to hand-hold the rig during this process.
The included 4S lithium-ion polymer battery powers the Ronin-M for up to six hours. It is a "smart" battery, meaning power regulation and protection circuitry is built-in and there is no separate balancing lead, unlike many lithium-polymer batteries. A charger is also included, and it is important to always use chargers designed for the Ronin-M battery because of the smart circuitry. Two 12V DC PowerTaps and one USB power port on the camera base allow you to power on-camera accessories directly from the Ronin-M battery to simplify your charging regime and avoid unnecessary added weight.
For Cameras Up to 8 lb
The Auto Configuration feature means the Ronin-M can adapt to a range of camera sizes, and is ideally suited for compact video cameras, mirrorless cameras, and DSLRs. It is suitable for payloads up to 8 pounds.
SmoothTrack gives a single gimbal operator the ability to translate their tilt and pan movements of the gimbal into smooth and stabilized movements of the camera's angle. This is designed to make framing of broad wide-angle scenes or even shooting in close quarters much easier during single gimbal operator use.
After balancing the camera with a simple tap of the ATS (Auto Tune Stability) button, Ronin-M will be automatically tuned for the mass and weight distribution of your camera rig. The gimbal will intelligently adjust parameters based on the camera rig's weight and independently adjust each of the three axes until an optimal setting is found.
Three Operation Modes
Upright Operation Mode
Upright Mode allows the gimbal to be flipped over so the camera can be operated closer to eye level without straining to lift the gimbal. This can be used in various situations, such mounting on the top of the vehicle.
Underslung (Suspended) Operation Mode
Suspended Operation Mode is the standard operation mode for Ronin-M. Low slung, close to the ground, or simply holding the gimbal in front of you offers stabilized handheld footage. This mode would also be used when mounted the gimbal on a flying platform such as a multirotor RC helicopter.
When a slimmer gimbal profile is needed - such as when moving through doorways or narrow paths - Briefcase Mode is ideal. It allows the gimbal to be held to the side and close to the legs, much like a briefcase.
Second Operator Control
Featuring the form factor of an RC aircraft radio controller, the 2.4 GHz Ronin transmitter provides pan and tilt control as well user-assignable speed settings and operation modes via two toggle switches. This allows one operator to hold the gimbal assembly while a second manually controls camera movement remotely. If you would rather use a third-party transmitter a D-bus port is provided as well.
Optional Thumb Controller for Pan / Tilt
Single thumb control is possible for the Ronin-M Handheld Gimbal System. These Pan and Tilt movements are controlled via the optional Thumb Controller attachment, available separately. Additionally, SmoothTrack Mode can be turned on or off using the Thumb Controller interface.
Assistant Software for Mobile and Windows
A mobile device or computer to run the Assistant Software is essential. It is available for select iOS mobile devices and Windows computers. With the software you can:
- Auto Configure the rig based on the weight and weight distribution of your camera after you've balanced it
- Adjust Smoothtrack tuning to user preference
- Enable and configure Second Operator Control
- Run diagnostics and generate stats
- Install firmware updates
The software can interface via USB or wirelessly over Bluetooth
A built-in balance adjustment system means no tools are needed for setup and adjustment, saving time when changing the setup for different camera arrangements.
Beside the handle bars, the gimbal unit can be detached for mounting on jibs, cranes, tripods, vehicle mounts, and other types of camera support equipment (additional mounting hardware, available separately, may be required).
Solid Support Arm
Increased rigidity is provided by a single, complete piece of fine-tooled magnesium that forms the U-shaped arm holding the camera plate. This unified design helps eliminate imperfection common in systems made of multiple pieces assembled together. The arm gives you not only greater stability but also reliability, as there is no potential for separate pieces to come loose or move apart
When shooting indoors or in tight spaces, Silent Mode reduces the sound of each motor as low as possible. The Ronin-M's stabilization algorithms are updated to focus on minute changes and stabilization, helping ensure the sound of the motors is not recorded by sensitive microphones or other recording equipment
Quick Release Smart Battery
Providing an estimated 6 hours of run time (depending on use), the proprietary Ronin-M battery system is designed for easy changes in the field and charges using a dedicated charger that is included. The batteries feature indicators so remaining power can be checked directly on the battery itself. Unlike may lithium-polymer batteries, with the Ronin-M Smart Battery, overcharge and over depletion protection is built-in, as is individual battery cell charge balancing.
Power Distribution Box
Two regulated 12V DC PowerTaps, one 500mAh type A female USB connector, and also a connection point for the DJI Lightbridge Long Range HD Video Downlink are provided. These provide power connection for various accessories, including motorized follow focus systems, video transmitters, and more - all while keeping the wiring to a minimum.
Quick Release Top Handle
Designed to save time breaking the system down or transporting it between locations. Removing the handle bars can also be useful to reduce size when filming in tight locations.
Based on Zenmuse Technology
The Ronin-M adapts the same brushless motor technology used in DJI's aerial gimbals for handheld, terrestrial use.
